產品名稱 : EJAW Series@www.datarack.com.tw

型號 : EJAW Series@www.datarack.com.tw


www.datarack.com.tw_珈鋒國際企業有限公司(Jaunty-Fabricator Enterprise Industrial Co., Ltd.)

Wall-Mount Rack 19" Model@Dr. Cabling

Economical, High Quality Wall Mount Component Cabinets

Specifically designed for space-constrained applications, this heavy duty swing out wallmount cabinet mounts directly to building walls.

Mat. : Steel

www.datarack.com.tw_珈鋒國際企業有限公司(Jaunty-Fabricator Enterprise Industrial Co., Ltd.)

　

產品特徵: @Dr. Cabling
 ●工藝先進，尺寸精準，符合 ANSI/EIARS-310-D 、 IEC297-2 、DIN41491;PART1 、 Part7 、 DIN41494。
●框架拼裝結構，強度好，承重達 60KG。
●壁掛式安裝方式，能實現現場快速安裝目標。
●可選配安裝裝軸流風機。
●上下部走線通道及通風孔。
●防護等級： IP20。
●材料： 1.SPCC 優質冷軋鋼板製作 2. 厚度：方空條 2.0mm, 其餘 1.2mm。

型號尺寸
���號 標準尺寸(U) 外寬(mm)Width 外深(mm)
EJAW6615 15U 600 600
EJAW6415 600 450
EJAW6612 12U 600 600
EJAW6412 600 450
EJAW6609 9U 600 600
EJAW6409 600 450
EJAW6606 6U 600 600
EJAW6406 600 450

proimages/Wall-Mount_Rack/EJAW_Series.jpg proimages/Wall-Mount_Rack/EJAW1-269x194.jpg proimages/Wall-Mount_Rack/EJAW-269x194.jpg

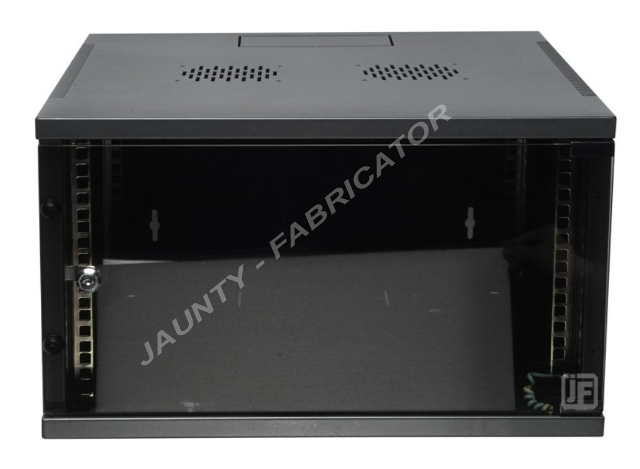

proimages/Wall-Mount_Rack/EJAW_Series-01-FrontView_IMG14528_233s.jpg

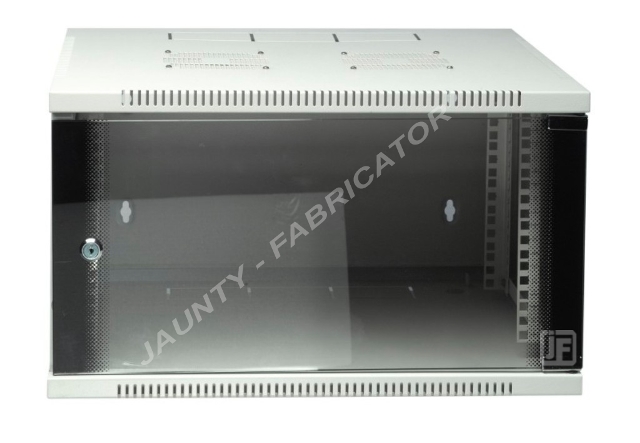

proimages/Wall-Mount_Rack/EJAW_Series-01-FrontView_IMG14539_243s.jpg

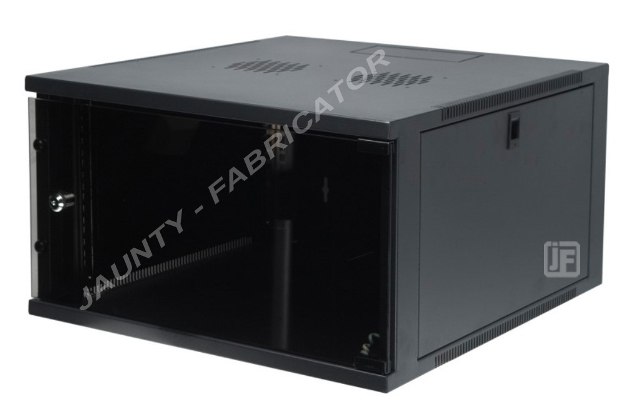

proimages/Wall-Mount_Rack/EJAW_Series-02-BevelView_IMG14529_234s.jpg

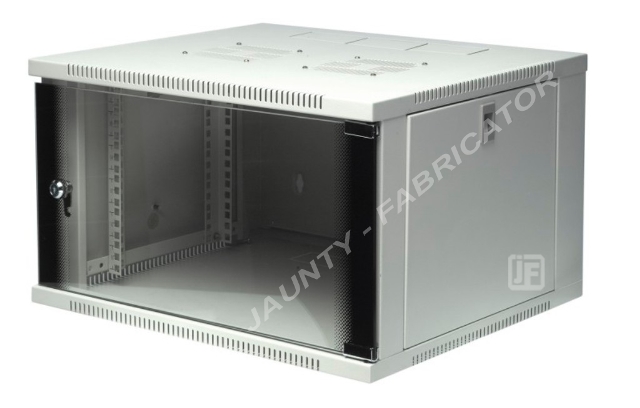

proimages/Wall-Mount_Rack/EJAW_Series-02-BevelView_IMG14540_244s.jpg

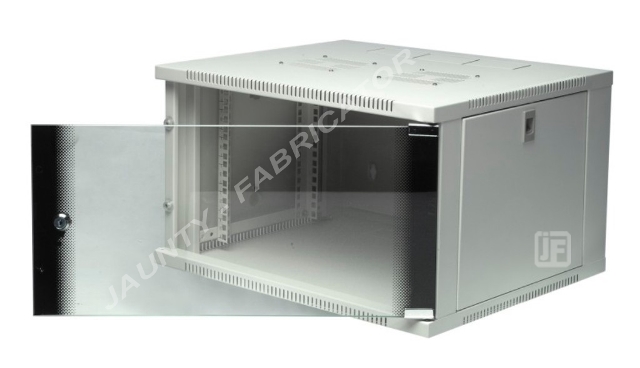

proimages/Wall-Mount_Rack/EJAW_Series-03-OpenView_IMG14541_245s.jpg

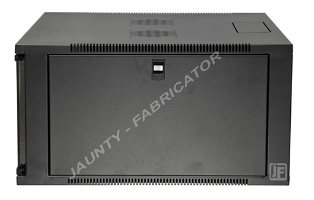

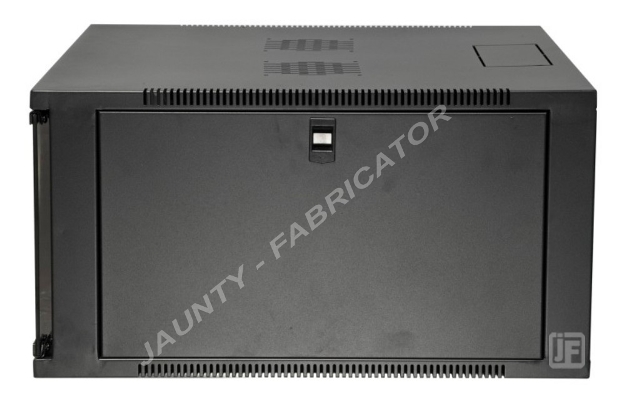

proimages/Wall-Mount_Rack/EJAW_Series-03-SideView_IMG14530_235s.jpg

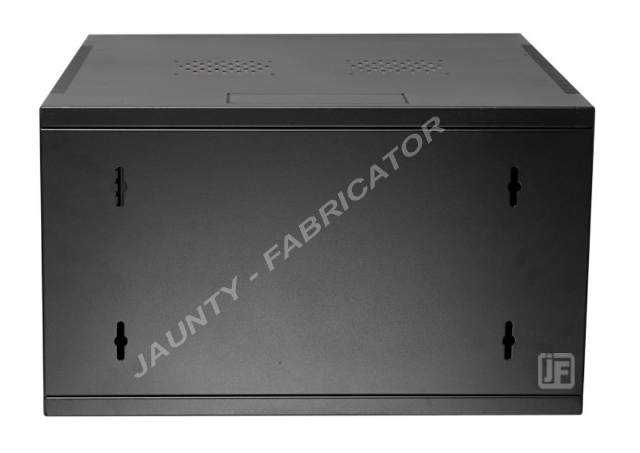

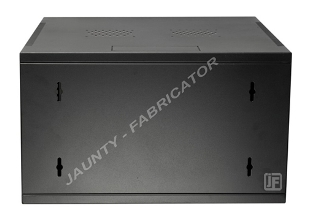

proimages/Wall-Mount_Rack/EJAW_Series-04-RearView_IMG14531_236s.jpg

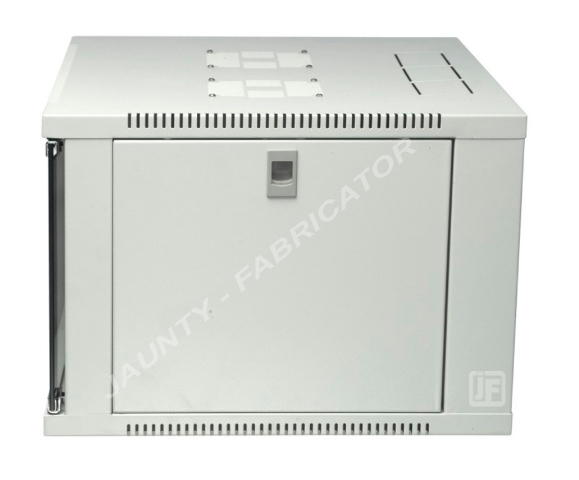

proimages/Wall-Mount_Rack/EJAW_Series-04-SideView_IMG14542_246s.jpg

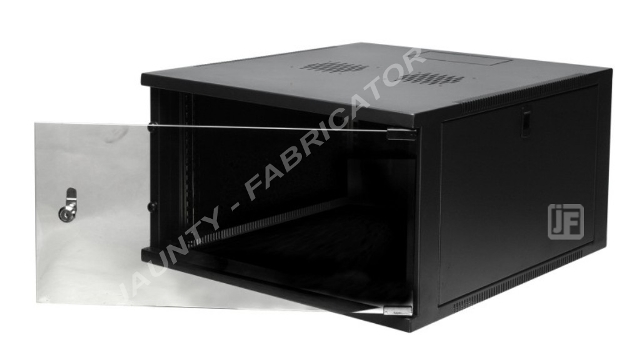

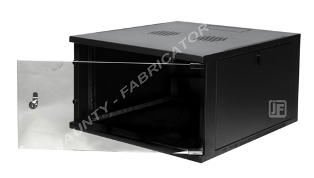

proimages/Wall-Mount_Rack/EJAW_Series-05-OpenView_IMG14533_237s.jpg

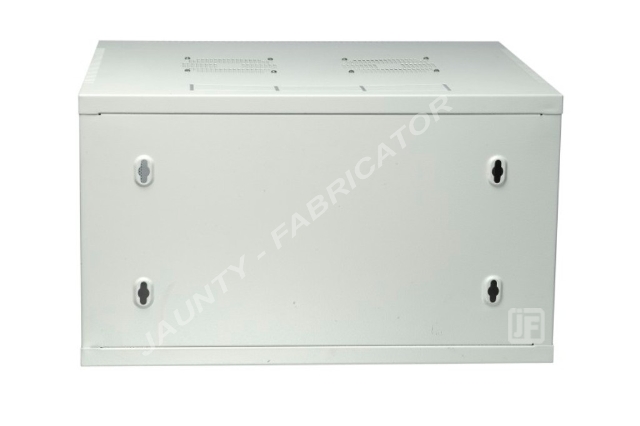

proimages/Wall-Mount_Rack/EJAW_Series-05-RearView_IMG14543_247s.jpg
